Interactive EV Motor Drive System Training Bench
An upgraded BYD E5 electric motor-drive trainer featuring a 43-inch interactive fault-setting and assessment display for propulsion, cooling and electrical diagnostics.
Product Overview
The interactive EV motor-drive training bench builds on the BYD E5 motor-drive platform and adds a 43-inch intelligent fault-setting and assessment system. Teacher and student interfaces support guided exercises, simulated faults and assessment. The bench also supports operating-condition demonstrations, OBD-II diagnostics, electrical measurement and a dedicated cooling circuit.
Key Features
01

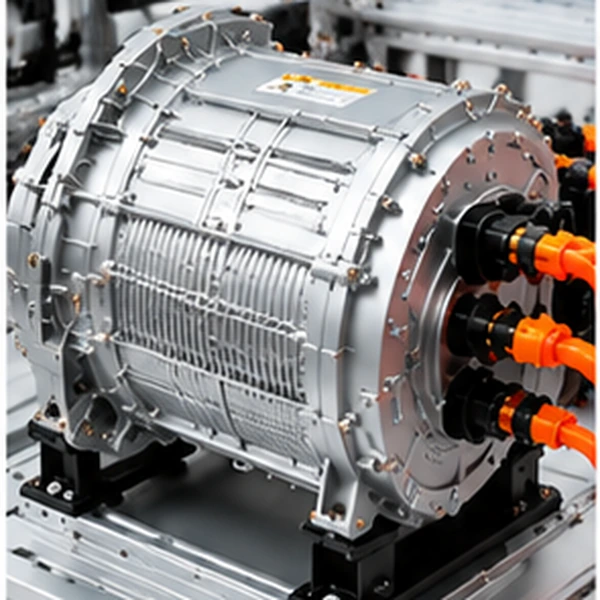

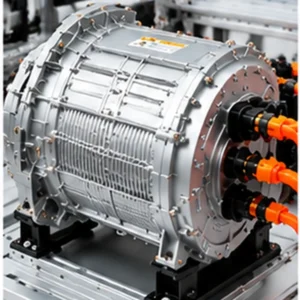

Electric Motor Assembly
Examine the traction motor and study its role in electric vehicle propulsion and power transmission.
02

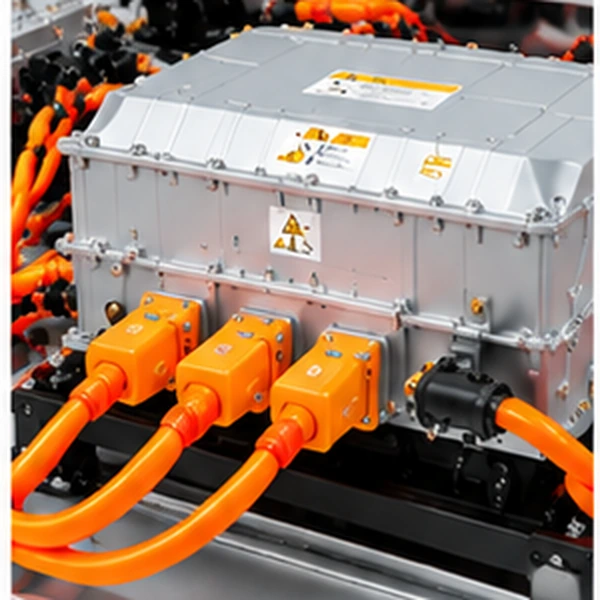

Inverter & High-Voltage Connections
Identify inverter components, high-voltage cable connections and the electrical power path.
03

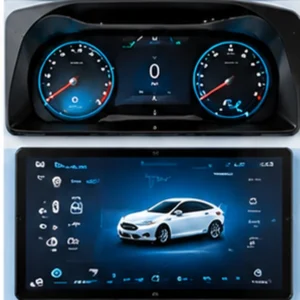

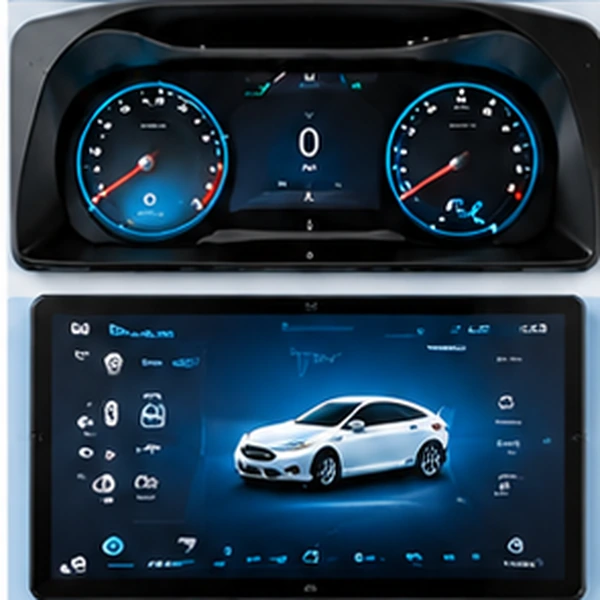

Interactive Display & Diagnostics
Use the instrument cluster and touchscreen to support operating demonstrations and interactive training exercises.
04

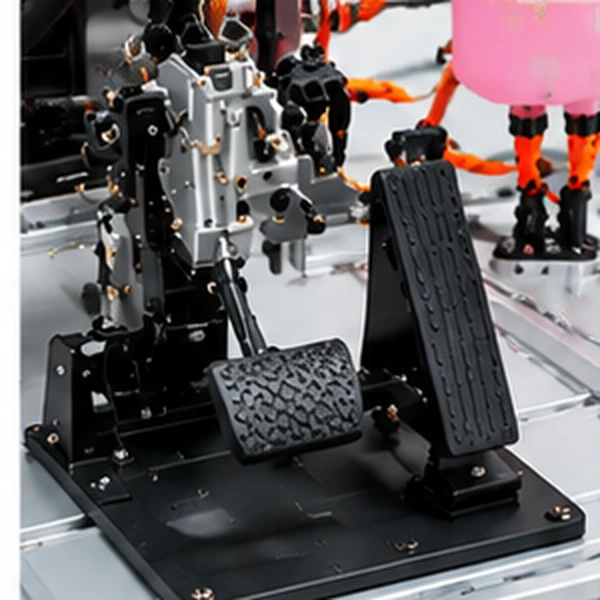

Pedal Assembly & Drive Control
Study accelerator and brake inputs and their relationship to simulated vehicle operating conditions.
Training Applications
- Study motor drive structure, acceleration and reverse operation
- Inspect motor sensors, insulation and cooling circuits
- Read and clear OBD-II diagnostic codes
- Demonstrate regenerative braking and resolver faults
- Conduct interactive student fault-assessment exercises
Technical Specifications
| Approximate bench dimensions | 2000 × 1300 × 1350 mm |
|---|---|
| Motor total power | 160 kW |
| Motor total torque | 310 N·m |
| Motor type | Permanent-magnet synchronous |
| Transmission | Fixed-ratio gearbox |
| Assessment display | 43 inches |
| Fault-control communication | Modbus / RS-485 |
| Teaching connectivity | Wi-Fi hotspot |
Based on the supplied factory document. Confirm final configuration, ratings and supplied components before quotation. Electrical training requires qualified supervision.
Upgrade Your Electric Vehicle Training Laboratory
Contact Outdevice to discuss teaching objectives, system configuration and a quotation.
