Product Overview
The Miniature Flexible Production Line Training Workstation reproduces several industrial process stages in a compact teaching setup. PLC, HMI, sensors, pneumatic actuators, stepper motion and conveyor mechanisms allow students to practise coordinated sequences and automation programming.
This solution is intended for education and practical skills development. The final system configuration can be tailored to the course objectives, available laboratory space and selected training modules.
Key Features

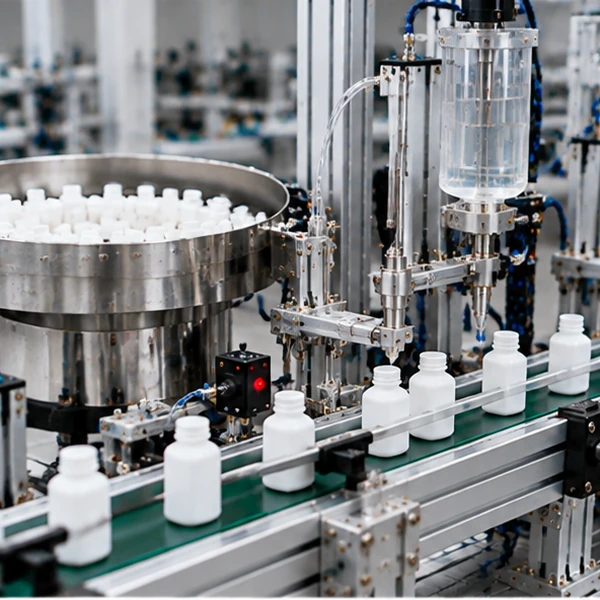

Bottle Feeding & Filling Simulation
A conveyor and dispensing mechanism simulate bottle feeding and controlled dispensing of small components.

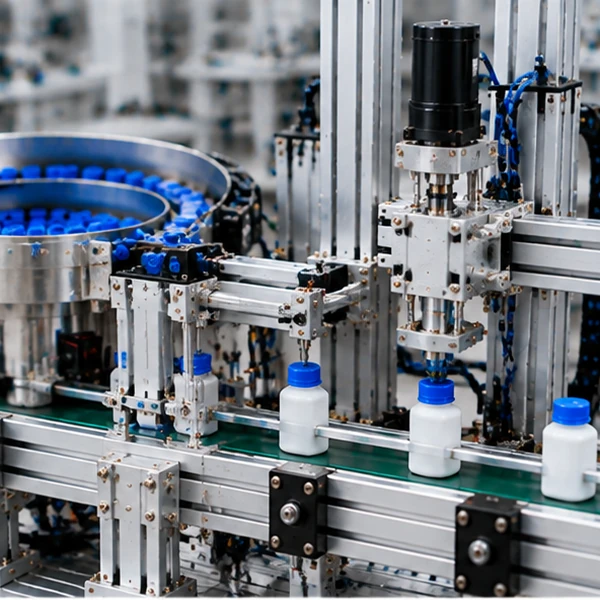

Cap Loading & Tightening
Conveyors, pneumatic cylinders and a stepper-driven mechanism demonstrate cap feeding and tightening sequences.

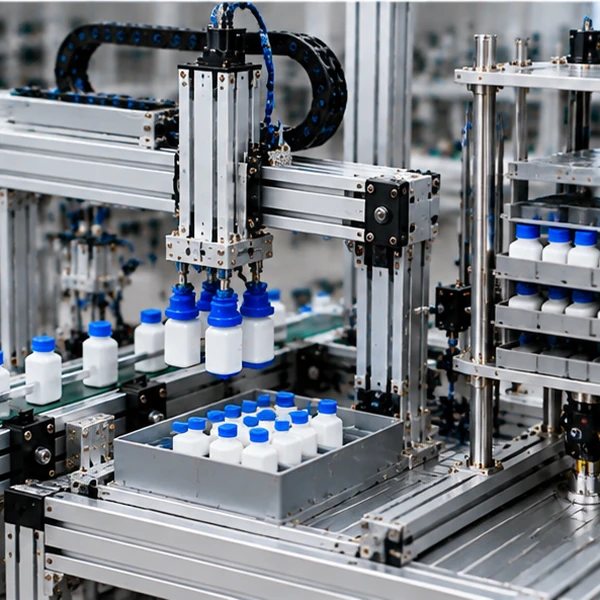

Packing & Storage
XY suction handling transfers finished products into trays, while a rotating/lifting mechanism simulates storage.

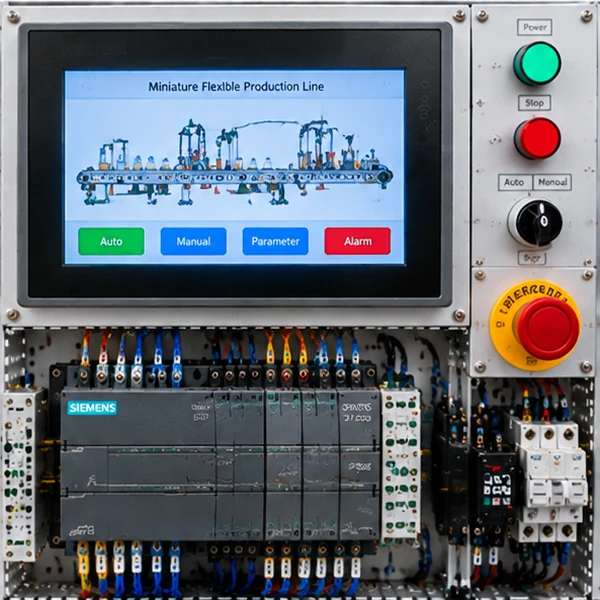

PLC/HMI Coordination
Students practise sequence logic, parameter setting, sensor handling and coordinated station control.
Practical Skills Development
Combine guided instruction with hands-on wiring, programming, testing and troubleshooting. Instructors can adapt exercises to the selected hardware and learning outcomes.
Feature Images & Training Modules
Training Content & Practical Exercises
- PLC sequence programming
- Flexible manufacturing demonstrations
- Pneumatic and stepper control
- HMI configuration and monitoring
- Production-line process training
Practical tasks may include system setup, wiring, PLC programming, operation, commissioning and fault diagnosis according to the final equipment configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| System type | Miniature simulated flexible production line |
| Process stations | Bottle feeding, cap feeding, cap tightening, packing and finished-product storage |
| Control | PLC and HMI; exact controller model to be confirmed |
| Actuation | 24 V DC conveyors, pneumatic cylinders and stepper-driven mechanisms as described |
| Monitoring | Three-colour status lamp and pressure regulator described |
| Packing capacity | Up to 4 finished products per tray, as described |
| Storage capacity | Up to 6 trays, as described |
| Dimensions | Not stated as a single complete-system dimension in the source |
Applications & Target Users
Suitable for educational and technical training environments, including:
- PLC sequence programming
- Flexible manufacturing demonstrations
- Pneumatic and stepper control
- HMI configuration and monitoring
- Production-line process training
Contact Outdevice to discuss course objectives, module selection, laboratory layout and the required level of training.
Build a More Practical Automation Training Lab
Looking for a PLC training solution for your school, vocational college or technical institute? Tell us your training goals and preferred configuration, and our team will help you prepare a suitable proposal.
