Interactive EV High-Voltage Control System Training Bench
A BYD E5-based high-voltage control trainer with a 43-inch interactive assessment display, covering vehicle control, onboard charging, DC/DC conversion and electrical diagnostics.
Product Overview
This training bench demonstrates BYD E5 vehicle control, charging control, DC/DC conversion and high-voltage distribution. The upgraded configuration incorporates a 43-inch intelligent fault-setting and assessment system with separate teacher and student interfaces. Protected measurement terminals, OBD-II diagnostics and connected fault control support practical teaching.
Key Features
01
Integrated High-Voltage Controls
Study vehicle controller, charging, DC/DC conversion and high-voltage distribution systems.
02

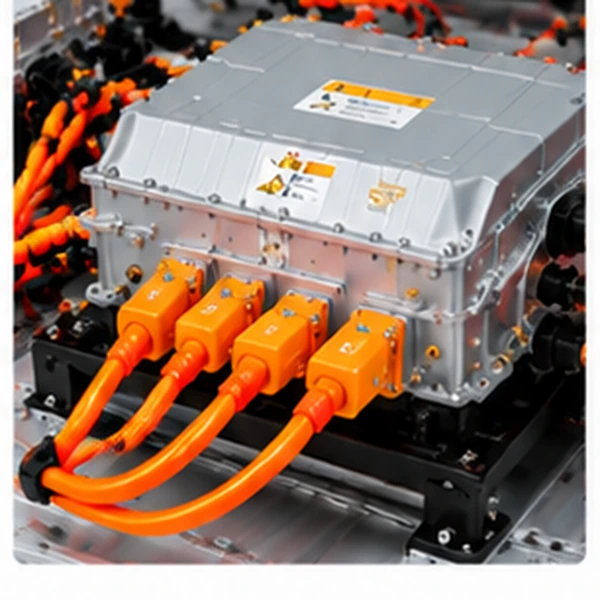

High-Voltage Control Modules
Explore control modules, electrical connections and high-voltage distribution circuits.
03

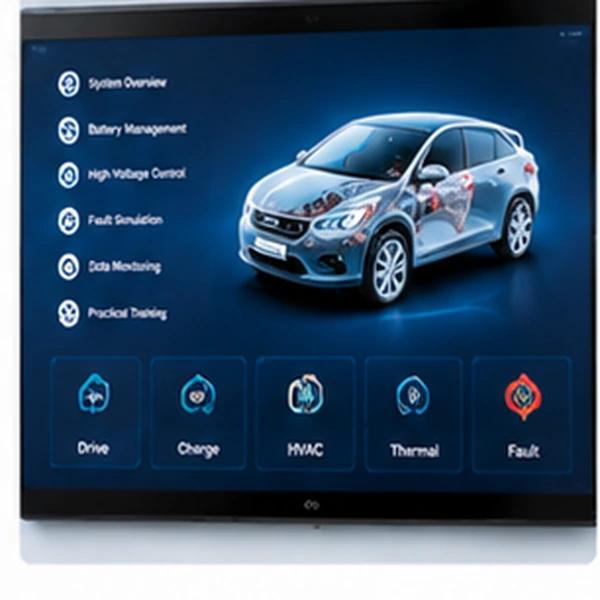

43-Inch Assessment Screen
Teacher and student interfaces enable structured fault exercises and practical assessment.
04

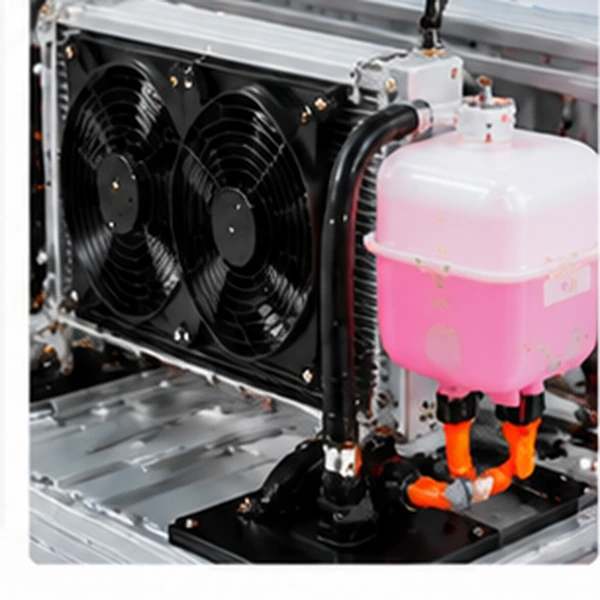

Cooling System & Diagnostics
Examine cooling components and use diagnostic interfaces for supervised troubleshooting exercises.
Training Applications
- Identify high-voltage control and distribution modules
- Study power-down, precharge and onboard charging processes
- Measure high- and low-voltage control circuits
- Diagnose charging faults and inspect DC/DC operation
- Conduct interactive fault-setting and assessment exercises
Technical Specifications
| Approximate bench dimensions | 1200 × 1100 × 1350 mm |
|---|---|
| Charging cable input | 110/220 VAC, 50 Hz, maximum 16 A |
| Charging cable output | 110/220 VAC, 50 Hz, maximum 16 A |
| Charging cable protection box | IP66 |
| Charging connector | IP54 |
| Assessment display | 43 inches |
| Communication | Modbus / RS-485 |
Specifications are based on the supplied factory document. Confirm final configuration, ratings and supplied components before quotation. High-voltage electrical training requires qualified supervision.
Upgrade Your Electric Vehicle Training Laboratory
Contact Outdevice to discuss teaching objectives, system configuration and a quotation.
