The Advanced PLC Training & Assessment Workstation uses a modular training format with PLC, inverter, simulated-load and wiring modules. It is intended for advanced vocational training, small engineering projects, installation and commissioning practice, and PLC/inverter application exercises.
This solution is intended for education and practical skills development. The final system configuration can be tailored to the course objectives, available laboratory space and selected training modules.
Key Features
Modular PLC Hardware

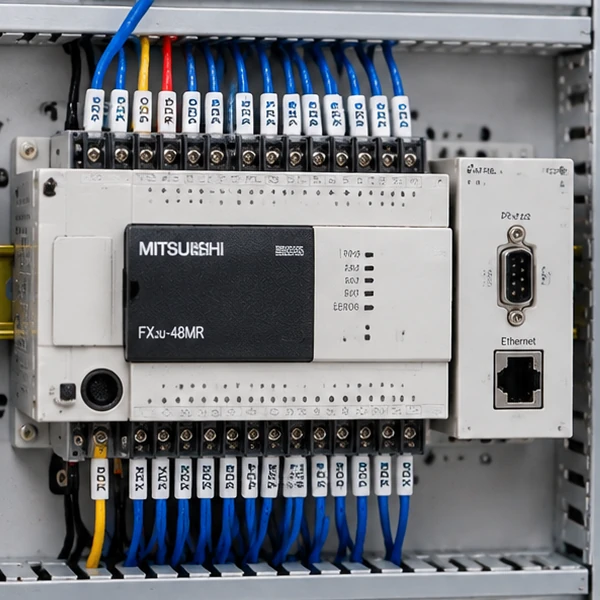

The source specifies a Mitsubishi FX3U-48MR PLC main module with digital I/O and communication interface.
Inverter Applications

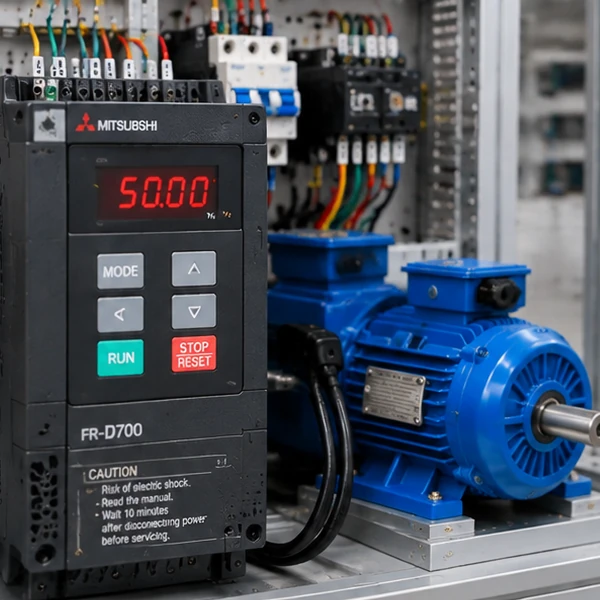

Learn inverter parameter setup, operation and PLC-based motor-control applications.
HMI Communication
The listed 7-inch Kunlun Tongtai touchscreen supports PLC communication and interface-design exercises.
Industrial Control Simulations

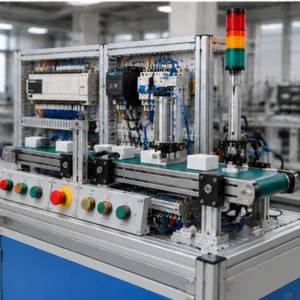

Training topics include conveyors, traffic lights, elevators, liquid mixing, sorting and other simulated processes.
Practical Skills Development
Combine guided instruction with hands-on wiring, programming, testing and troubleshooting. Instructors can adapt exercises to the selected hardware and learning outcomes.
Feature Images & Training Modules
Replace each image URL below with a real factory photo or an uploaded image from your product media library before publishing.
Training Content & Practical Exercises
- Advanced PLC programming
- Inverter setup and communication
- HMI interface design
- Industrial control skills training and assessment
Practical tasks may include system setup, wiring, PLC programming, operation, commissioning and fault diagnosis according to the final equipment configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| PLC | Mitsubishi FX3U-48MR, as specified |
| PLC digital I/O | 24 digital inputs and 24 digital outputs, as listed for this configuration |
| Inverter | Mitsubishi FR-CS82S, with communication interface and BOP panel |
| HMI | 7-inch Kunlun Tongtai touchscreen |
| Power input | Three-phase, five-wire AC 380 V ±5%, 50 Hz, as described in the source |
| Power supply outputs | +5 V/1 A and +24 V/1 A DC supplies are specified |
| Structure | Modular training units; steel modules specified |
| Training topics | PLC basic instructions, simulation, inverter, HMI, motor control and process-control exercises |
Applications & Target Users
Suitable for educational and technical training environments, including:
- Advanced PLC programming
- Inverter setup and communication
- HMI interface design
- Industrial control skills training and assessment
Contact Outdevice to discuss course objectives, module selection, laboratory layout and the required level of training.
Build a More Practical Automation Training Lab
Looking for a PLC training solution for your school, vocational college or technical institute? Tell us your training goals and preferred configuration, and our team will help you prepare a suitable proposal.
