Interactive EV Body Electrical System Training Bench
An upgraded BYD E5 cutaway vehicle-body electrical trainer demonstrating original 12 V lighting, power-window and central-locking systems.
Product Overview
An upgraded BYD E5 cutaway vehicle-body electrical trainer demonstrating original 12 V lighting, power-window and central-locking systems. Designed for technical colleges, vocational education and EV service training laboratories, this system supports practical instruction based on the manufacturer’s documented functions.
Key Features
01
Original Cutaway Body
Shows internal body structure and factory component positions.
02
Working 12 V Systems
Operate lighting, windows and central locking on the teaching assembly.
03
Interconnected Modules
Designed for integration with related EV training benches.
04
Practical Diagnostics

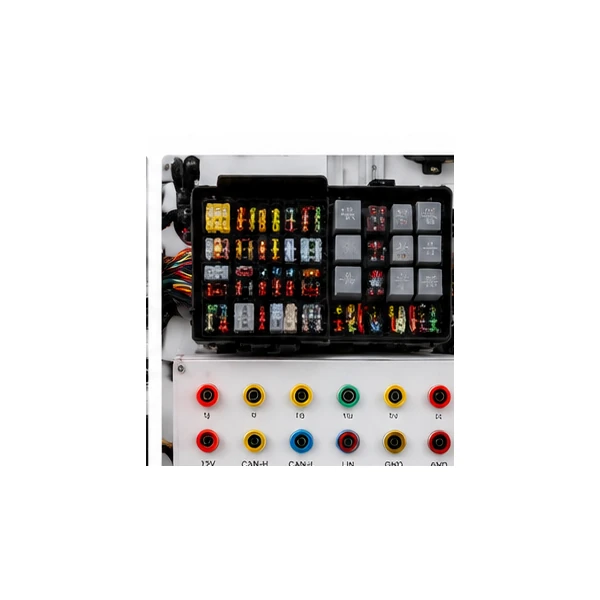

Supports circuit measurement and fault-identification exercises.
Training Applications

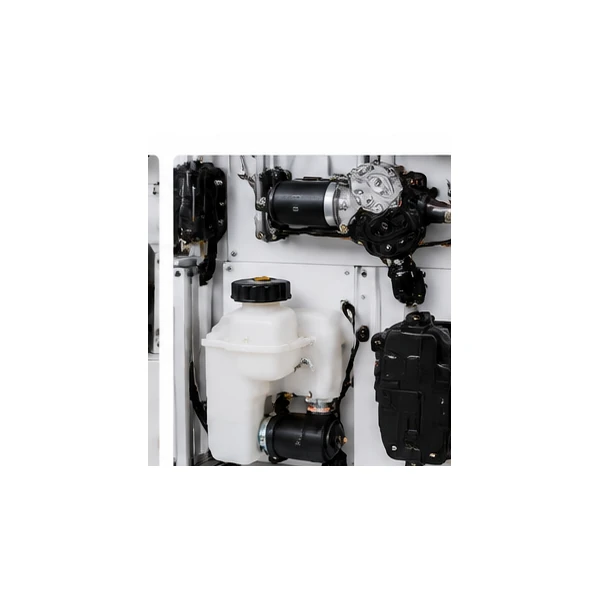

- Identify body electrical modules and wiring

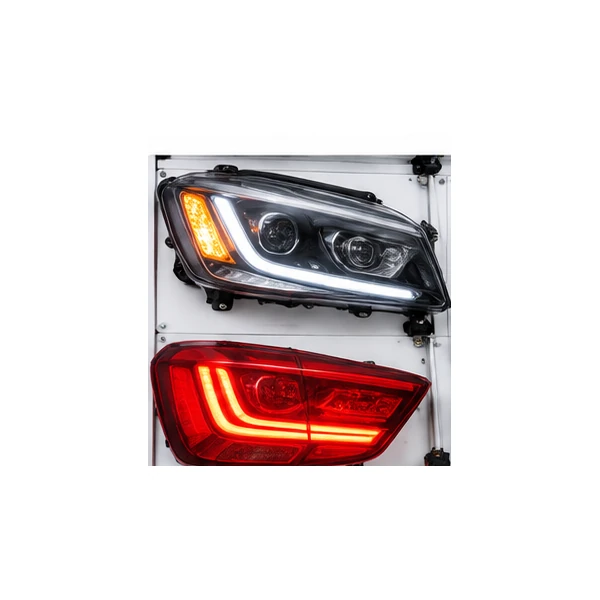

- Test lighting, window and locking circuits
- Observe original component operation and locations
- Practice EV body-electrical fault diagnosis
Technical Specifications
+
| Approximate cutaway body dimensions | 4680 × 1765 × 1550 mm |
|---|---|
| Additional dimension listed by supplier | 1800 × 600 × 1800 mm (component not specified) |
| Auxiliary electrical system | 12 V |
Specifications are based on the supplied factory document. Confirm final configuration and supplied components before quotation. Electrical work must be supervised by qualified personnel.
