Interactive EV Air Conditioning System Training Bench
An upgraded BYD E5 electric HVAC training bench with a 43-inch interactive fault-setting and assessment display for practical cooling and heating diagnostics.
Product Overview
An upgraded BYD E5 electric HVAC training bench with a 43-inch interactive fault-setting and assessment display for practical cooling and heating diagnostics. Designed for technical colleges, vocational education and EV service training laboratories, this system supports practical instruction based on the manufacturer’s documented functions.
Key Features
01

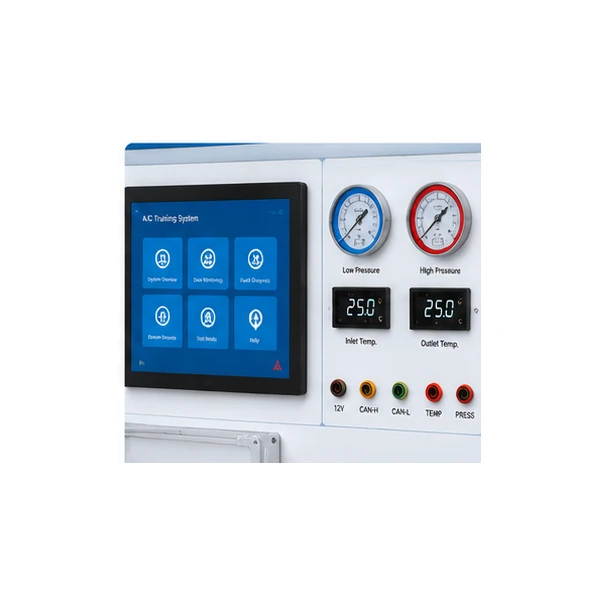

43-Inch Interactive Display
Teacher and student interfaces support fault-setting and assessment.
02
Cooling & Heating Demonstrations

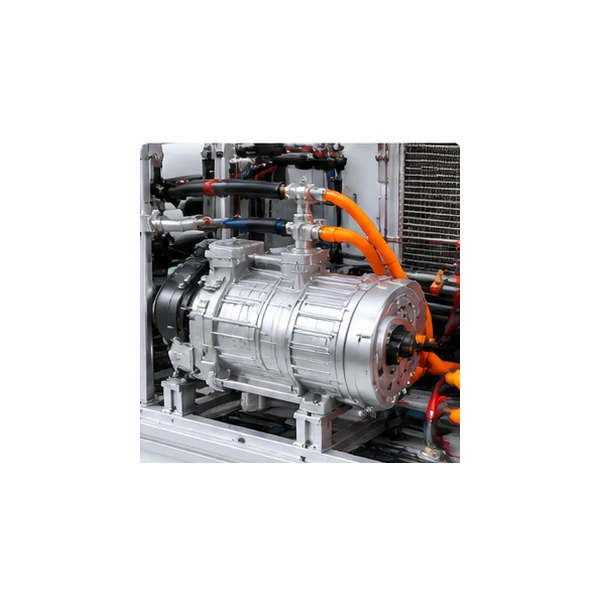

Study scroll compressor and PTC heater operation.
03
Diagnostic Measurement
Protected terminals and OBD-II support supervised electrical diagnosis.
04
Connected Assessment
Modbus/RS-485 fault control and Wi-Fi teaching terminals.
Training Applications

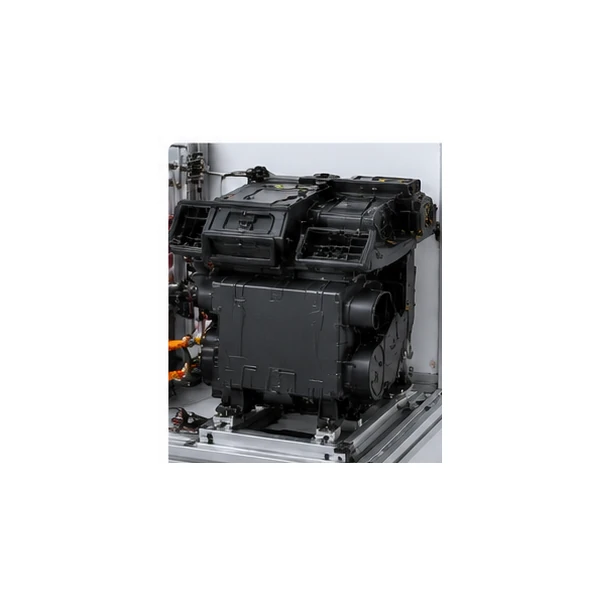

- Inspect HVAC structure, sensors and electrical circuits
- Test compressor insulation and PTC heater operation
- Perform refrigerant-system diagnostic exercises
- Complete interactive fault-setting and assessment tasks
Technical Specifications
+
| Approximate dimensions | 1200 × 1000 × 1350 mm |
|---|---|
| Operating voltage | 320 V |
| Refrigerant | R410 (as stated in supplier document) |
| Assessment screen | 43 inches |
| Communication | Modbus / RS-485; Wi-Fi teaching access |
Specifications are based on the supplied factory document. Confirm final configuration and supplied components before quotation. Electrical and refrigerant work must be supervised by qualified personnel.
Upgrade Your Electric Vehicle Training Laboratory
Contact Outdevice to discuss teaching objectives, system configuration and a quotation.
