EV High-Voltage Control System Training Bench
BYD E5-based training platform demonstrating vehicle control, charging control, DC/DC conversion and high-voltage distribution.
Product Overview
BYD E5-based training platform demonstrating vehicle control, charging control, DC/DC conversion and high-voltage distribution. Designed for technical colleges, vocational institutions and electric vehicle training laboratories, it supports practical instruction using the functions described in the manufacturer’s documentation.
Key Features
Integrated Control Systems
Covers vehicle control, charging, DC/DC and high-voltage control assemblies.
Circuit Testing
Color diagrams and external terminals support non-destructive electrical measurements.
Protected Diagnostics

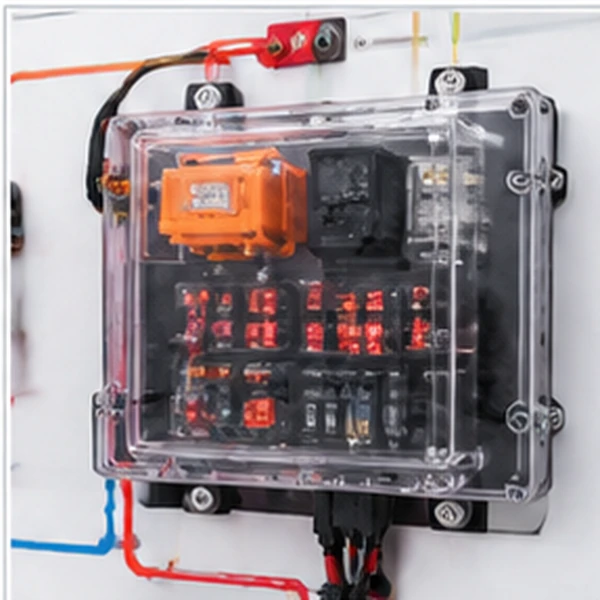

Covered high-voltage terminals and OBD-II access support supervised diagnostics.
Visible Assemblies

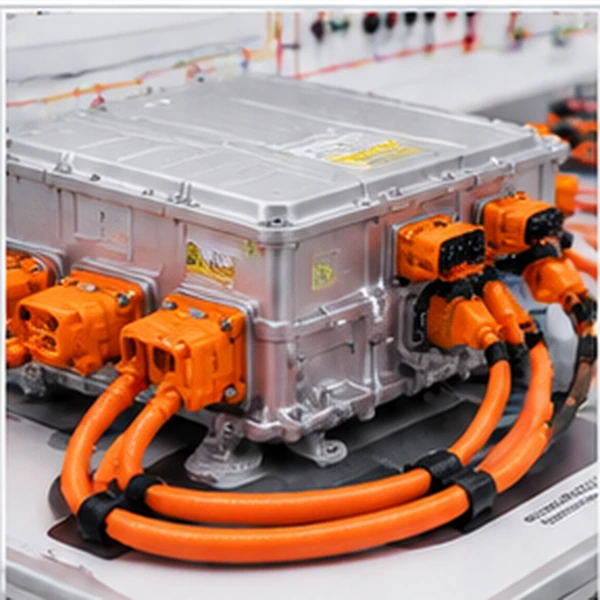

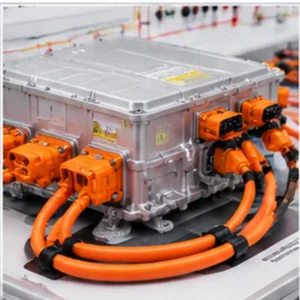

Transparent covers and a mobile aluminum frame help demonstrate system components.
Training Applications
- Identify high-voltage distribution and precharge functions

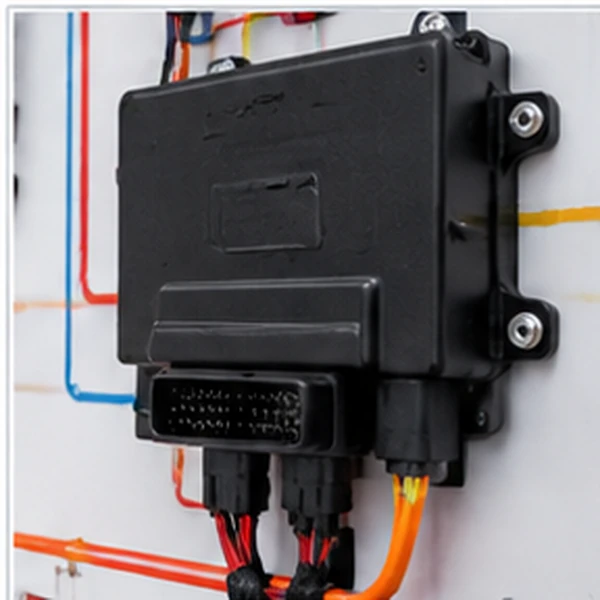

- Study vehicle controller, DC/DC and onboard charger operation
- Measure high- and low-voltage control circuits
- Diagnose charging-system faults
Technical Specifications
| Bench dimensions | 1400 × 1100 × 1820 mm |
|---|---|
| Charging cable input | 110/220 VAC, 50 Hz, max. 16 A |
| Charging cable output | 110/220 VAC, 50 Hz, max. 16 A |
| Charging cable protection box | IP66 |
| Charging connector | IP54 |
Specifications are based on the supplied factory document. Confirm final configuration and supplied components before quotation. High-voltage training requires qualified supervision and appropriate safety procedures.
Upgrade Your Electric Vehicle Training Laboratory
Contact Outdevice to discuss teaching objectives, system configuration and a quotation.
