Complete EV High-Voltage System Wall Trainer
Wall-mounted BYD E5-based teaching system displaying electric vehicle high-voltage components, cutaway powertrain assemblies and animated current-flow paths.
Product Overview
Wall-mounted BYD E5-based teaching system displaying electric vehicle high-voltage components, cutaway powertrain assemblies and animated current-flow paths. Designed for technical colleges, vocational institutions and electric vehicle training laboratories, it supports practical instruction using the functions described in the manufacturer’s documentation.
Key Features
01

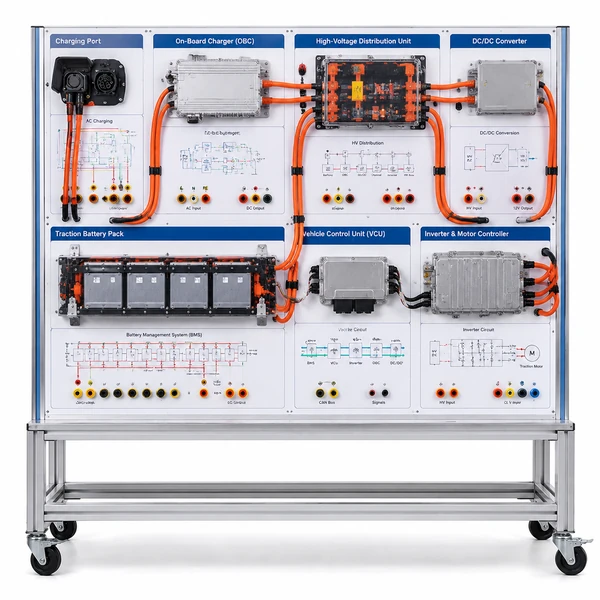

Full-System Wall Layout
Presents key BYD E5 high-voltage, charging and braking components.
02

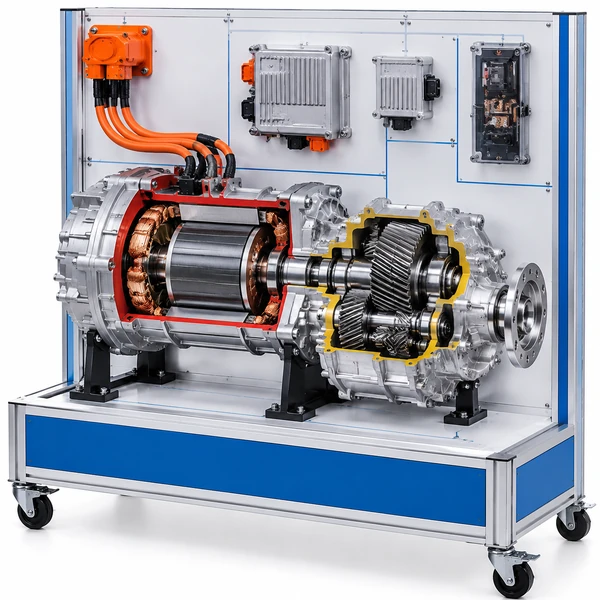

Cutaway Motor & Reducer
Sectioned motor and reducer expose their internal structure.
03

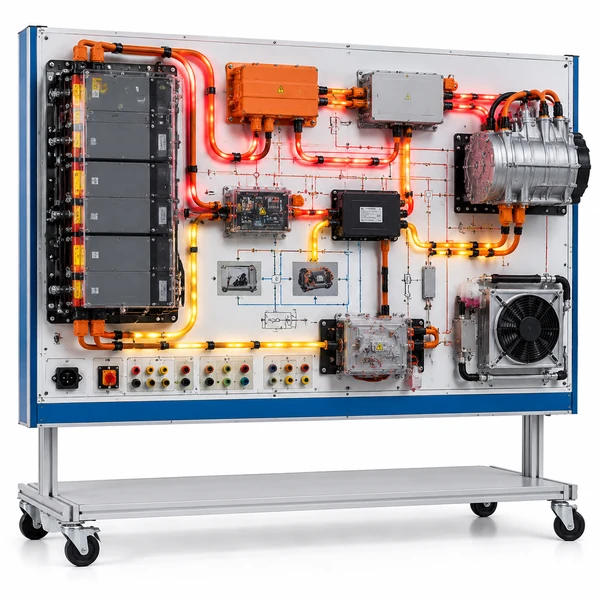

Animated Power Flow
LED light strips illustrate high-voltage and brake hydraulic paths.
04

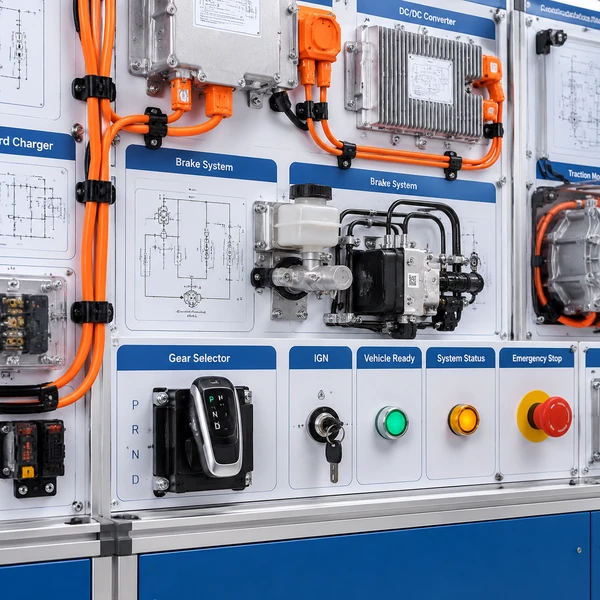

Live Demonstration
Wired assemblies support gear-selection and operating demonstrations.
Training Applications
- Identify high-voltage components and perform insulation checks
- Study cutaway motor and reducer construction
- Demonstrate gear selection and drive-mode switching
- Understand charging ports, braking and mechanical subsystems
Technical Specifications
| Approximate dimensions | 3800 × 2400 × 240 mm |
|---|---|
| Input voltage | AC 220 V |
| Operating voltage | DC 12 V |
| Operating temperature | −10°C to +40°C |
| Motor type | Permanent-magnet synchronous motor |
| Frame | 40 × 40 mm galvanized square tube |
Specifications are based on the supplied factory document. Confirm final configuration and supplied components before quotation. High-voltage training requires qualified supervision and appropriate safety procedures.
Upgrade Your Electric Vehicle Training Laboratory
Contact Outdevice to discuss teaching objectives, system configuration and a quotation.
