EV Drive Motor Cutaway Training Bench
A cutaway BYD E5 drive motor and powertrain teaching system revealing internal mechanical structures and operating principles.
Product Overview
A cutaway BYD E5 drive motor and powertrain teaching system revealing internal mechanical structures and operating principles. Designed for vocational colleges, technical institutions and EV maintenance training centers, this system supports structured practical instruction based on the equipment functions described by the manufacturer.
Key Features
Real Cutaway Assembly

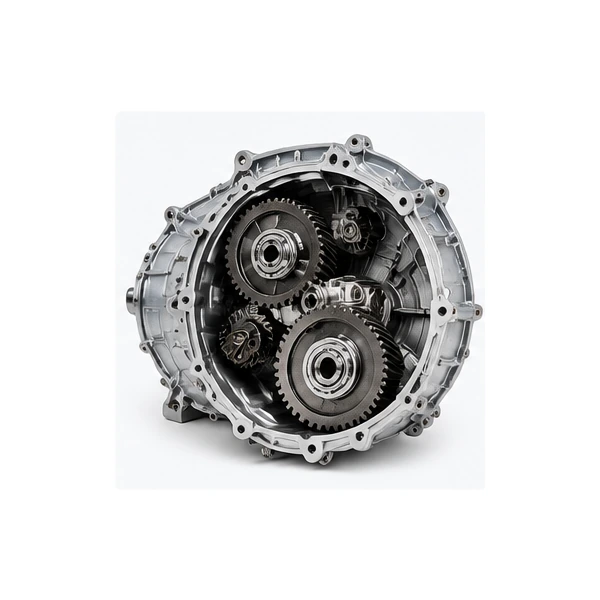

Shows the internal and external BYD E5 powertrain structure.
Detailed Sectioning

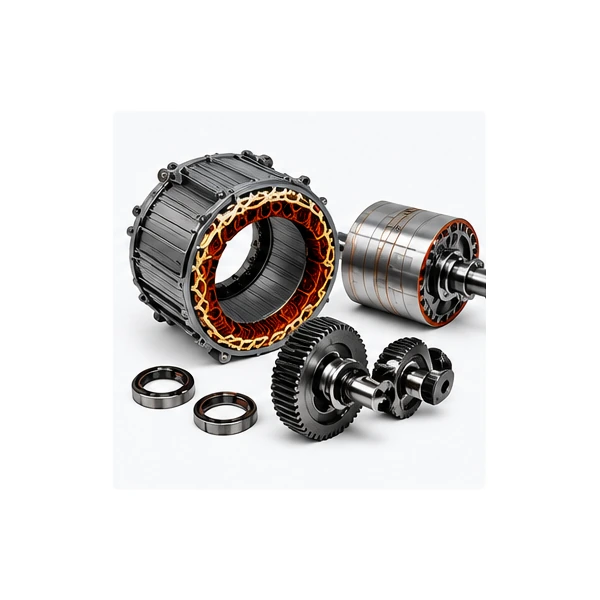

Cutaway housing, windings and laminations reveal components.
Color-Coded Parts
Cut surfaces are painted and treated against corrosion.
Mobile Teaching Stand
Aluminum-profile structure with lockable casters.
Training Applications

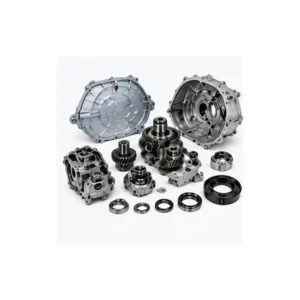

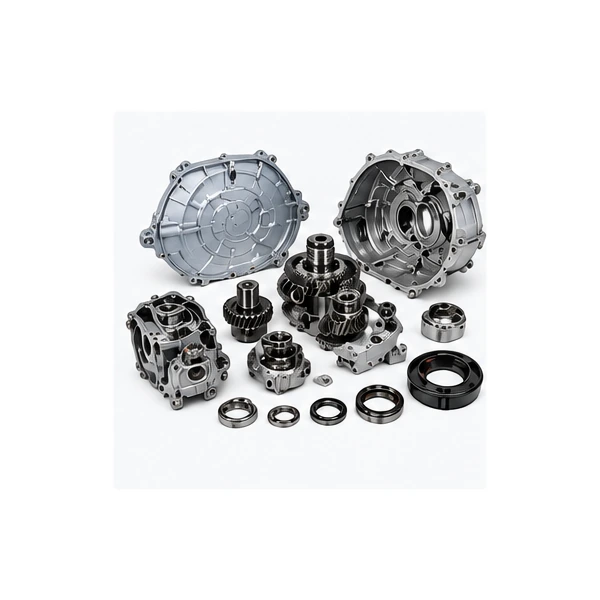

- Recognize drive motor and transmission components
- Study internal motor construction
- Observe mechanical cross-sections
- Understand EV powertrain operating principles
Technical Specifications +
| Maximum torque | 310 N·m (0–4,929 rpm, 30 s) |
|---|---|
| Rated torque | 160 N·m (0–4,775 rpm, continuous) |
| Maximum input power | 160 kW (4,929–12,000 rpm, 30 s) |
| Rated power | 80 kW (4,775–12,000 rpm, continuous) |
| Working temperature | −40°C to +50°C |
Specifications are based on the supplied factory document. Confirm final configuration and supplied components before quotation.
