BYD E5 Cutaway EV Structure Training Vehicle
A specially sectioned BYD E5 electric vehicle training car that reveals body, chassis, wiring, suspension and electrical structures while retaining key operating systems for instructional demonstration.
Product Overview
The BYD E5 Cutaway EV Structure Training Vehicle is built from a real electric vehicle with selected body panels and interior areas carefully sectioned. The supplier specifies that the original drivetrain, electrical control systems and essential structural support points are retained, and that the vehicle remains independently operable. It is intended for visual instruction in complete-vehicle construction and subsystem operating principles.
Key Features
Real Vehicle Construction
Uses an original BYD E5 electric vehicle as the teaching base.

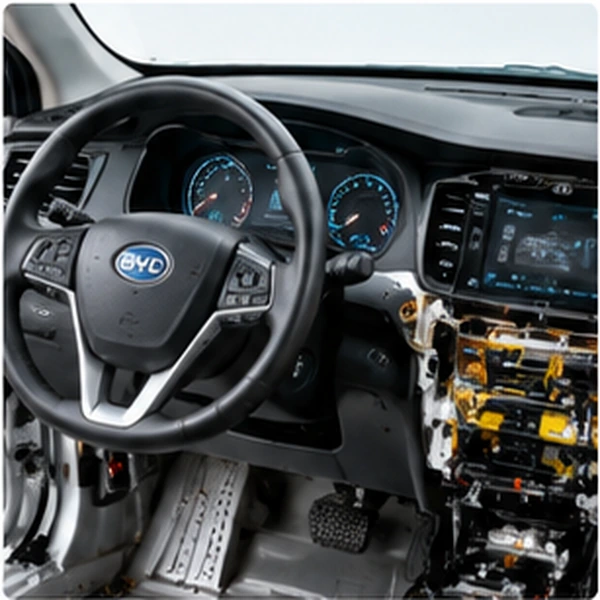

Visible Internal Systems
Sectioned body and interior expose wiring, chassis, suspension and electrical components.
Retained Operating Systems
The source specifies preserved drivetrain and control functions, with independent vehicle operation.
Color-Coded Cutaway Areas
Carefully finished sectioned surfaces distinguish structures and support classroom demonstration.
Training Applications
- Identify complete EV body and chassis structures

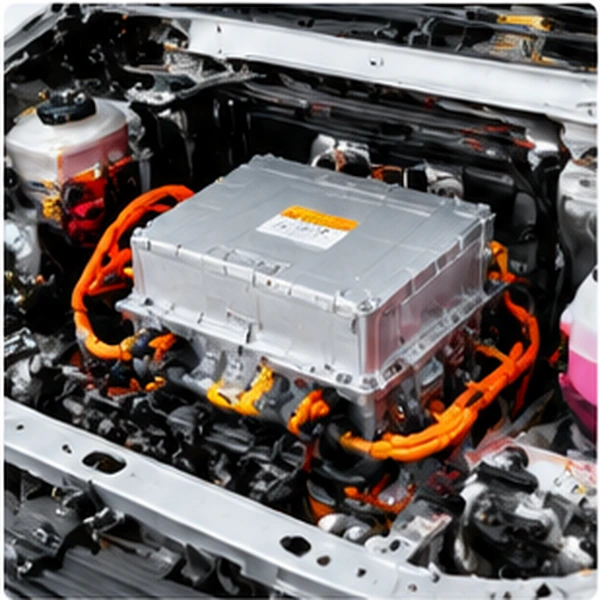

- Study drivetrain and electric propulsion architecture

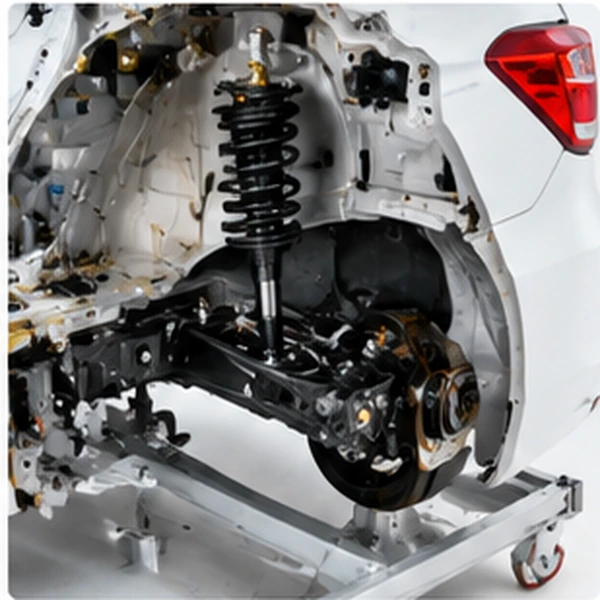

- Observe suspension, braking and steering systems
- Examine body wiring, electrical components and HVAC air distribution
- Support automotive construction and vehicle-electrical courses
Technical Specifications
| Vehicle platform | BYD E5 electric vehicle |
|---|---|
| Cutaway design | Selected body sheet metal and interior sections |
| Preserved systems | Drivetrain, electrical and electronic controls |
| Operating status | Supplier specifies independently operable vehicle |
| Numerical vehicle specification | Not separately provided for product #17 |
Based on the supplied factory document. Confirm vehicle configuration, safety, lifting equipment (if applicable), and final supplied components before quotation. A training cutaway vehicle should not be assumed road-legal.
Upgrade Your Electric Vehicle Training Laboratory
Contact Outdevice to discuss teaching objectives, system configuration and a quotation.
